Anti-electric shock Waterproof circuit Anti-vibration and heat dissipation Long warranty
Graphene Battery 3.0 Plus
Graphene negative electrode technology High corrosion-resistant alloy grid technology High-strength positive lead technology
Precision Frame
Robot stacking welding 1 million+ times vibration Long warranty
30%
Strength Improvement
40%
Hardness Improvement
2 ×
Anti-Rust

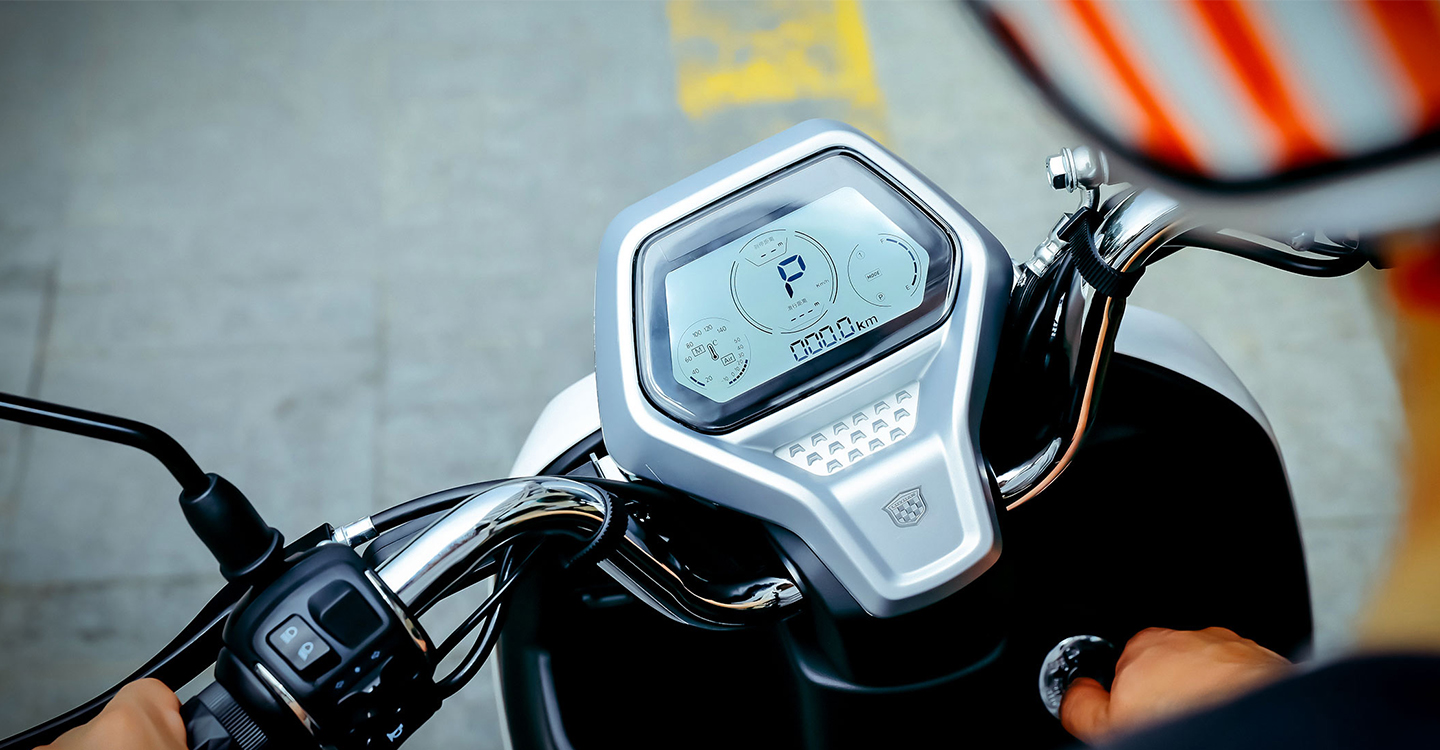

Digital Battery Care System
Bluetooth controller Battery insulation Battery heating plate
1.5x
more anti-puncture
Ceramic Brake
Ceramicised composite material Lola labour-saving structure
30%
shorter braking distance
5 ×
Wear-Resistant
Super Lithium Battery
It is fully upgraded, adopting the second generation of mixed-doped lithium manganese monocrystalline acid and high safety, long-life lithium manganese iron phosphate materials
2000
cycles of cell
100KM
on a single charge
Parameters

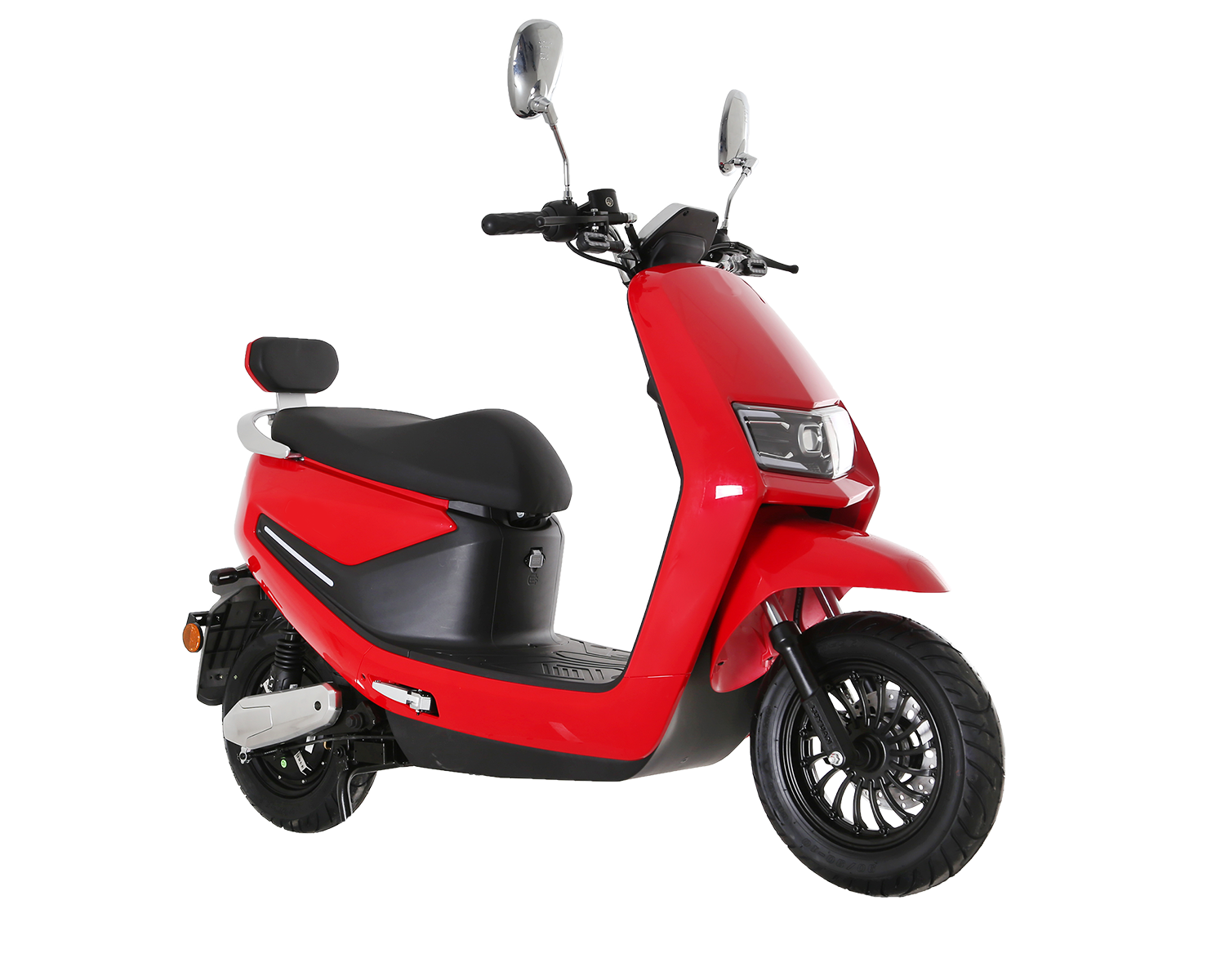

MB5 Lite
MB5 Plus
MB5 Li-T
Electrical
Battery Types
CSP Lead Acid Battery
CSP Lead Acid Battery
CSP Lead Acid Battery
Battery Capacity
72V 20Ah
60V 30Ah
60V 40Ah
Motor
Type
Liquid Cooling Motor 2.0
Liquid Cooling Motor 2.0
Liquid Cooling Motor 2.0
Rated Power
1000W
1200W
1200W
Peak Power
2000W
2500W
2500W
Max. Speed
45km/h
60km/h
50km/h

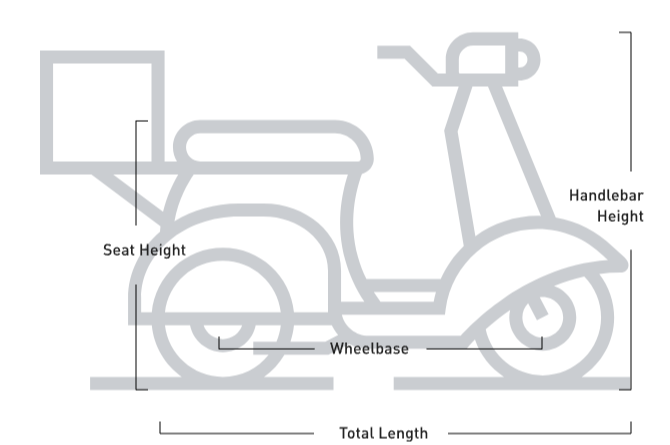

Sizes
Weight(exclude battery)
71.5kg
Battery Weight
17kg
Tire Size
F: 90/90-12, E4 tire R: 90/90-10, E4 tire
Total Length
1750mm
Total Width
710mm
Total Height
1090mm
Seat Height
740mm
Wheelbase
1270mm
Climbing Ability
12°
* The above dimensions are based on the MB5 Lite model. For other models, please refer to the actual vehicles.
